Product Details
Place of Origin: China, Beijing, China

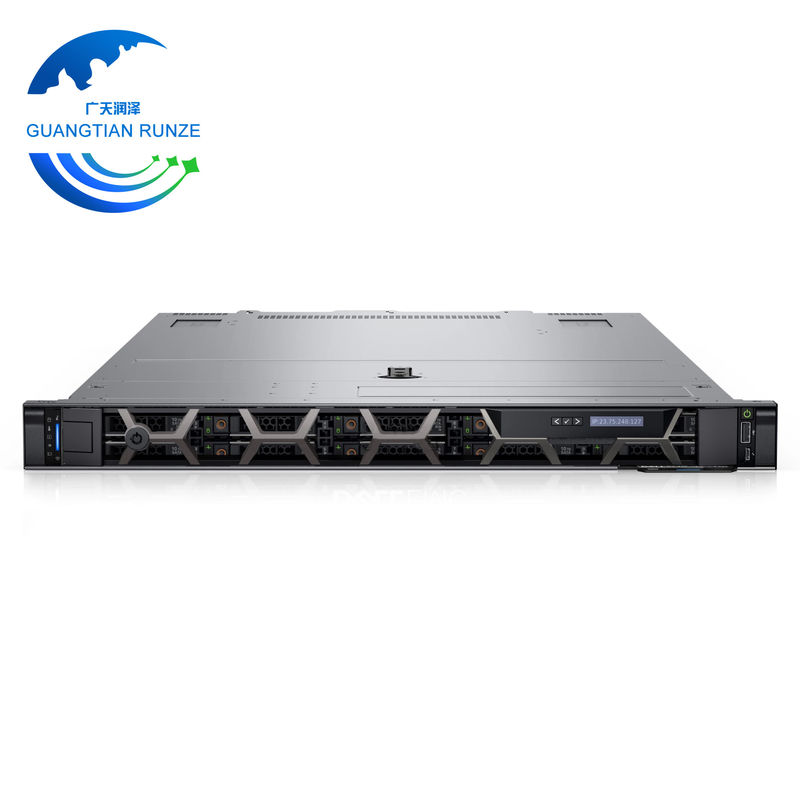

Model Number: R650, R650
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $2,099.00/pieces >=2 pieces
Products Status: |
Stock |
Processor Main Frequency: |
2.2GHz |
Form Factor: |
1U Rack Server |
CPU: |
4114 |
Memory: |
16GB |
RAID Controller: |
H330 |
Power Supply: |
495W Redundant PSUs |
Port: |
Tianjin |
Products Status: |
Stock |
Processor Main Frequency: |
2.2GHz |
Form Factor: |
1U Rack Server |
CPU: |
4114 |
Memory: |
16GB |
RAID Controller: |
H330 |
Power Supply: |
495W Redundant PSUs |
Port: |
Tianjin |
PowerEdge R640 Specification | ||
Form Factor: | 1U Rack Server | |
Processors: | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor | |
Memory: | 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only | |
Storage Controllers: | Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB External PERC (RAID): PERC H840, HBA355E | |
Drive Bays: | Front bays: - Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB - Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB - Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Rear Bays: - Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB | |
Power Supplies: | 800 W Platinum AC/240 HVDC 1100 W Titanium AC/240 HVDC 1400 W Platinum AC/240 HVDC | |
Cooling Options: | Air cooling, optional processor liquid cooling | |
Fans: | Standard fan/High performance SLVR fan/High performance GOLD fan Up to four sets (dual fan module) hot plug fans | |
Dimensions: | Height – 42.8 mm (1.7 inches) Width – 482 mm (18.97 inches) Depth – 809 mm (31.85 inches) without bezel, 822.84 mm (32.39 inches) with bezel | |
Embedded Management: | iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module | |
Bezel: | Optional LCD bezel or security bezel | |
OpenManage Software: | OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin | |
Mobility: | OpenManage Mobile | |
Integrations and Connections: | OpenManage Integrations: - BMC Truesight - Microsoft System Center - Red Hat Ansible Modules - VMware vCenter and vRealize Operations Manager OpenManage Connections: - IBM Tivoli Netcool/OMNIbus - IBM Tivoli Network Manager IP Edition - Micro Focus Operations Manager - Nagios Core - Nagios XI | |
Security: | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
Embedded NIC: | 2 x 1 GbE LOM | |
Network Options: | 1 x OCP 3.0 (x8 PCIe lanes) | |
GPU Options: | Up to three 75 W single-width GPU | |
Ports: | Front Ports: - 1 x Dedicated iDRAC Direct micro-USB - 1 x USB 2.0 - 1 x VGA Rear Ports: - 1 x USB 2.0 - 1 x Serial (optional) - 1 x USB 3.0 - 2 x RJ-45 - 1 x VGA (optional for liquid cooling configuration) Internal Ports: - 1 x USB 3.0 | |
PCIe: | Up to 3 x PCIe Gen4 slots (all x16 except one x8 slot with SNAP I/O modules) or 2 x PCIe (Gen4) full height slots | |
Operating Systems & Hypervisors: | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi | |
