Product Details
Place of Origin: China
Brand Name: Inspur
Model Number: Inspur NF8260M6 server
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $10,999.00 - $12,999.00/pieces
Packaging Details: box
Supply Ability: 10000 Piece/Pieces per Month
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Type: |
Xeon |
Product Name: |
Inspur NF8260M6 Server |
Memory: |
256GB DDR4 |
Processor: |
5318H*2 |
Form Factor: |
2U 4-socket Rackmount Server |
Power Supply: |
550w*2 |
Hard Drive: |
1.8T SAS*2 |
Warranty: |
3 Years |
Port: |
Tianjin |
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Type: |
Xeon |
Product Name: |
Inspur NF8260M6 Server |
Memory: |
256GB DDR4 |
Processor: |
5318H*2 |
Form Factor: |
2U 4-socket Rackmount Server |
Power Supply: |
550w*2 |
Hard Drive: |
1.8T SAS*2 |
Warranty: |
3 Years |
Port: |
Tianjin |

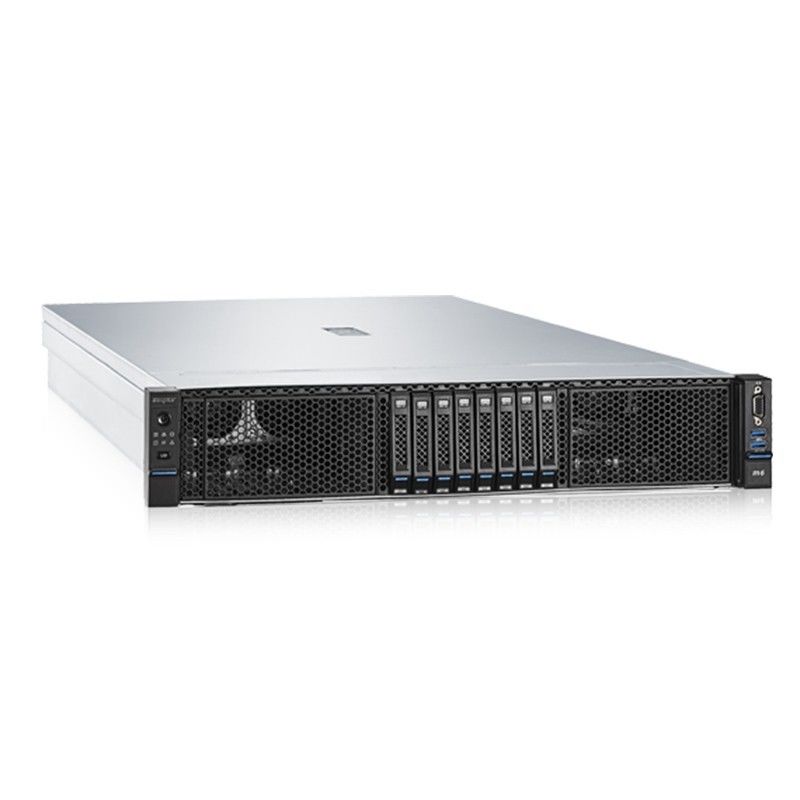

NF8260M6 2U Rackmount Inspur GPU Server 256G 1.8T
|
Model
|
Description
|
|
Form Factor
|
2U rackmount server
|
|
Processor
|
2-4 3rd Generation Intel® Xeon® Scalable processor(s);
|
|
Up to 28 cores (2.9GHz);
|
|
|
Max. speed of 3.9GHz (8 cores);
|
|
|
6 UPI interconnected chains and up to 10.4GT/s per chain;
|
|
|
Max. power of 250W.
|
|
|
Chipset
|
Intel C621A
|
|
Memory
|
Up to 48 DDR4 DIMMs, max. speed of 3,200MT/s;
|
|
RDIMM and LRDIMM, and max.128G for each;
|
|
|
Up to 12 DIMMs per CPU (48 DIMMs/4CPUs);
|
|
|
24 Intel® Optane™ Persistent Memory 200 Series (Barlow Pass) and max. 512GB for each.
|
|
|
Storage
|
Front: up to 24/25 x 2.5-inch drives, and (optional) 24 x NVMe SSDs
|
|
Built-in: support up to 2 x M.2 SSDs and 2 x Micro SD cards.
|
|
|
Storage Controller
|
SATA controller that supports RAID 0/1/5/10;
|
|
NVMe controller with optional Intel NVMe RAID Key;
|
|
|
Optional standard PCIe RAID controller.
|
|
|
Network Port
|
OCP 3.0 x16 network cards (options: 1/10/25/100 Gb) and standard PCIe cards (options: 1/10/25/40/100 Gb).
|
|
I/O Expansion Slot
|
Up to 12 x standard PCIe slots and 1 x OCP 3.0 slot.
|
|
Ports
|
Front: 1 x USB2.0 port, 1 x USB3.0 port, 1x VGA port
|
|
Built-in: 1 x USB3.0 ports
|
|
|
Rear: 2 x USB3.0 port, 1 x VGA port, 1 x dedicated management port, 1 x BMC port,
and 1 x COM port Fan 6 x hot-swap N+1 redundant fans |
|
|
Fan
|
6 x hot-swap N+1 redundant fans
|
|
Power Supply
|
Up to 2 x 800W/1300W/1600W/2000W CRPS power supplies (Platinum), 1+1 redundancy. Option: titanium-level.
|
|
System Management
|
On-board BMC provides a 1Gb RJ45 management port that is dedicated to remote management of IPMI.
|
|
BMC Flash on-chip redundancy.
|
|
|
Operating System
|
Microsoft Windows Server, Red Hat Linux, SUSE Linux Enterprise Server, CentOS, Vmware ESXi, etc.
|
|
Dimension(W x H xD)
|
435mm x 87mm x 841mm
|
|
17.12 inch x 6.87 inch x 33.11 inch
|
|
|
Weight
|
Less than 34 kg at full load.
|
|
Refer to the technical white paper for details.
|
|
|
Operating Temperature
|
5℃ to 45℃
|
|
41℉ to 113℉
|
|
|
Refer to the technical white paper for details.
|
