Product Details
Place of Origin: China
Brand Name: Inspur

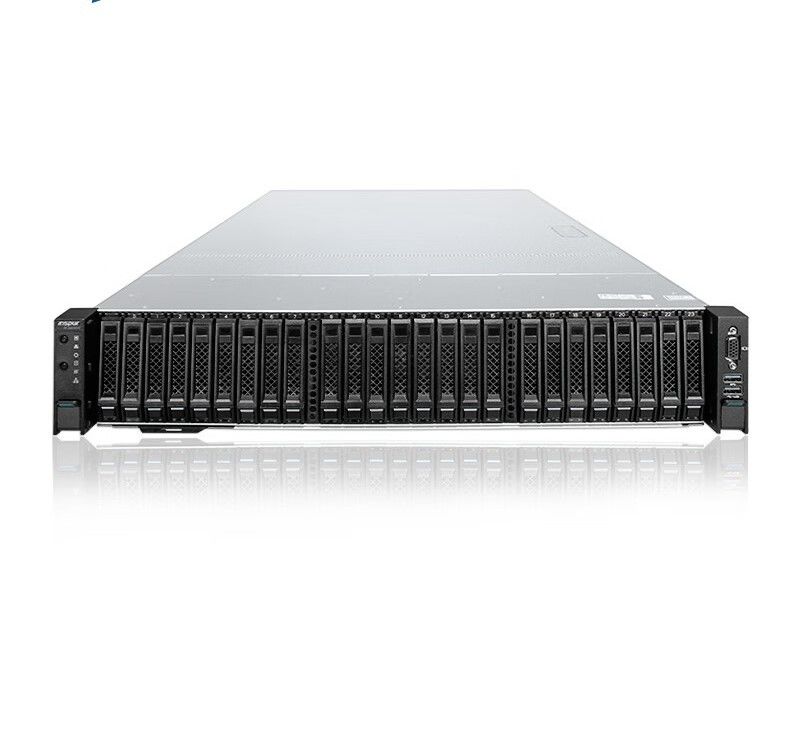

Model Number: NF5280M5 Server Inspur
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $6,999.00/pieces >=2 pieces
Packaging Details: box
Supply Ability: 10000 Piece/Pieces per Month
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Type: |
Xeon |
Product Name: |
NF5280M5 Server Inspur |
Memory: |
256GB DDR4 |
Processor: |
4210R*2 |
Form Factor: |
2U Dual-socket Rackmount Server |
Power Supply: |
550*2 |
Hard Drive: |
2*240G SSD+2*1.92T SSD+8*8T SATA |
Warranty: |
3 Years |
Port: |
Tianjin |
Private Mold: |
NO |
Products Status: |
Stock |
Type: |
Rack |
Processor Type: |
Xeon |
Product Name: |
NF5280M5 Server Inspur |
Memory: |
256GB DDR4 |
Processor: |
4210R*2 |
Form Factor: |
2U Dual-socket Rackmount Server |
Power Supply: |
550*2 |
Hard Drive: |
2*240G SSD+2*1.92T SSD+8*8T SATA |
Warranty: |
3 Years |
Port: |
Tianjin |
|
|
|
|
Form Factor
|
2U |
|
GPU
|
Supported by NVIDIA official certification, support 4 V100, T4 and other GPU accelerator cards
|
|
Processor
|
2x Intel® Xeon® Scalable processor
Processor Core: up to 28 cores (freq. 2.7GHz) Processor Frequency: up to 3.8GHz (4 cores) Two UPI interconnected links, the maximum transmission rate of single link is 10.4GT/s TDP: up to 205W |
|
Chipset
|
Intel C621/C622/C624
|
|
Memory
|
Up to 24*DDR4 2400/2666/2933MT/s memory
Single CPU supports 12* DIMMs, dual CPU supports 24* DIMMs Supports RDIMM/LRDIMM/Optane™ PMem Each RDIMM/LRDIMM supports up to 128GB (Skylake) / 256GB (Cascade Lake) Each Optane™ PMem supports up to 512GB (Cascade Lake) |
|
Storage
|
Front: up to 12* 3.5” / 25* 2.5” hard drives
Internal: up to 4* 3.5” and 2* M.2 SSDs Rear: up to 4* 3.5”, 4* 2.5” hard drives Supports SAS/SATA/SSD (maximum quantity of supported hard drives corresponds to specific configurations ) |
|
Storage Controller
|
Onboard SATA controller, supporting RAID 0/1/5/10
Optional onboard NVMe controller interface and Intel NVMe RAID Key |
|
Network
|
Supports 1* OCP or 1* PHY
PHY: supports 2/4* 1/10 Gb Ethernet port OCP: supports 1/2* 10/25Gb Ethernet port Standard PCIe Ethernet card: supports 1/10/25/40/100 Gb |
|
I/O Expansion
|
Supports up to 9* PCIe x8 slots
Different quantitative combination of x8/x16/OCP/PHY slots can be achieved by selecting different PCIe Riser Supports up to 4 double wide GPU, 8 single wide GPU |
|
Interface
|
Front:1* USB 2.0 (supporting LCD module), 1* USB 3.0, 1* VGA, 1* UID indicator light and button
Internal: 2* USB 3.0 Rear: 2* USB 3.0, 1* VGA, 1* Management interface, 1* UID indicator light and button |
|
System fan
|
4* hot-swap N+1 redundant fans (dual-rotor)
|
|
PSU
|
Supports 2* 550W / 800W / 1300W / 1600W / 2000W PSU (Platinum/Titanium)
1+1 redundant |
|
System management
|
Onboard BMC management module, supporting IPMI, SOL, KVM
Over IP, virtual media and other management features; providing one 1Gb RJ45 management interface (supporting NCSI); supporting SSD life detection and other functions |
|
OS
|
Supports Windows Server / Red Hat / SUSE / CentOS / Debian / XenServer / Oracle Linux / ESXi / Ubuntu etc.
|
|
Dimensions
|
435mm (W) x 87mm (H) x 780mm (D)
|
