Home > products > Lenovo GPU Server > Xeon 4210 Lenovo GPU Server Thinksystem SR650 V2 32GB Memory 2U

Xeon 4210 Lenovo GPU Server Thinksystem SR650 V2 32GB Memory 2U

Product Details

Place of Origin: Beijing, China

Brand Name: Lenovo

Model Number: sr650

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $2,000.00 - $4,000.00/pieces

Packaging Details: box

Supply Ability: 100 Piece/Pieces per Month

Get Best Price
Highlight:

Xeon 4210 Lenovo GPU Server

,

SR650 V2 Lenovo GPU Server

,

2U thinksystem sr650 v2

Products Status:
Stock
Type:
Rack
Processor Main Frequency:
2.1 GHZ
Processor Type:
Intel Xeon 4210
Port:
Tianjin
Feature:
SR650 V2
Storage Controller:
2x Onboard SATA Ports
Dimensions:
75X27X55 Cm
Products Status:
Stock
Type:
Rack
Processor Main Frequency:
2.1 GHZ
Processor Type:
Intel Xeon 4210
Port:
Tianjin
Feature:
SR650 V2
Storage Controller:
2x Onboard SATA Ports
Dimensions:
75X27X55 Cm
Xeon 4210 Lenovo GPU Server Thinksystem SR650 V2 32GB Memory 2U

Xeon 4210 Lenovo GPU Server Thinksystem SR650 V2 32GB Memory 2U



Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth.

SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.


Product Description
Form Factor/Height
2U rack/server
Processors
Up to 2 second-generation Intel® Xeon® Platinum processor, up to 205W
Memory
Up to 7.5TB in 24x DIMM slots using 128GB DIMMs and Intel® Optane™ DC Persistent Memory; 2666MHz / 2933MHz TruDDR4
Expansion Slots
Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter
Drive Bays
Up to 14x 3.5” or up to 24. 2.5” hot-swap bays (up to 12 AnyBay bays or up to 24 NVMe bays); up to 2x M.2 boot drives (RAID 1)
HBA/RAID Support
HW RAID (up to 24 ports) with flash cache; up to 16-port HBAs
Security and Availability Features
TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access
diagnostics via dedicated USB port
Network Interface
2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port
Power (Energy Star 2.0 compliant)
2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V DC 80 PLUS Platinum

Feature
SR650 V2




Processor
2x 3rd Gen Intel Xeon Scalable Processor
Up to 40 cores & 270W per CPU
64x PCIe 4.0 lanes per CPU






Memory
8 channels per CPU
32x TruDDR4 (RDIMM/3DS) 3200 MHz DIMMs
Up to 1DPC & 2DPC @ 3200MHz
Max 8 TB with 32x 256 GB DIMMs
Intel Optane PMem 200 Series






Disk
Up to 40 total 2.5-inch drives bays
Up to 12x 3.5-inch or 24x 2.5-inch front bays
4x 3.5-inch or 8x 2.5-inch mid drive bays
2x 2.5-inch rear SAS/SATA/NVMe
Up to 32x 2.5-inch NVMe drives
2x 7mm hot-swap rear SAS/SATA/NVMe for boot
2x Internal M.2 with optional RAID 1








RAID
12Gb SAS/SATA/RAID support
PCIe 3.0 and PCIe 4.0 adapters
Onboard SATA support with RAID
Onboard VROC NVMe support with RAID
Wider range of 8-, 16- and 32-port RAID adapters + SAS expander
8- and 16-port HBAs
12x Onboard NVMe ports
NVMe Retimer adapters for 16x NVMe



Networking
Selectable OCP 3.0, 1GbE, 10GbE or 25GbE
Optional PCIe adapters
1GbE dedicated management port


PCIe
Up to 8x PCIe 4.0 slots
1x internal bay for cabled RAID/HBA

GPU support
Up to 8x NVIDIA T4 GPUs
Up to 3x double-wide GPUs






Management and security
XClarity Controller with upgrades
Full XClarity software suite including XClarity Administrator
Optional lockable front bezel
Optional intrusion switch
Support for External Diagnostics Handset
Platform Firmware Resiliency (PFR) hardware Root of Trust




Power supplies
2x Hot-swap PSUs up to 1800W, Platinum
750W Hot-swap Titanium PSU
-48V DC power for Telco
240V HVDC support in China

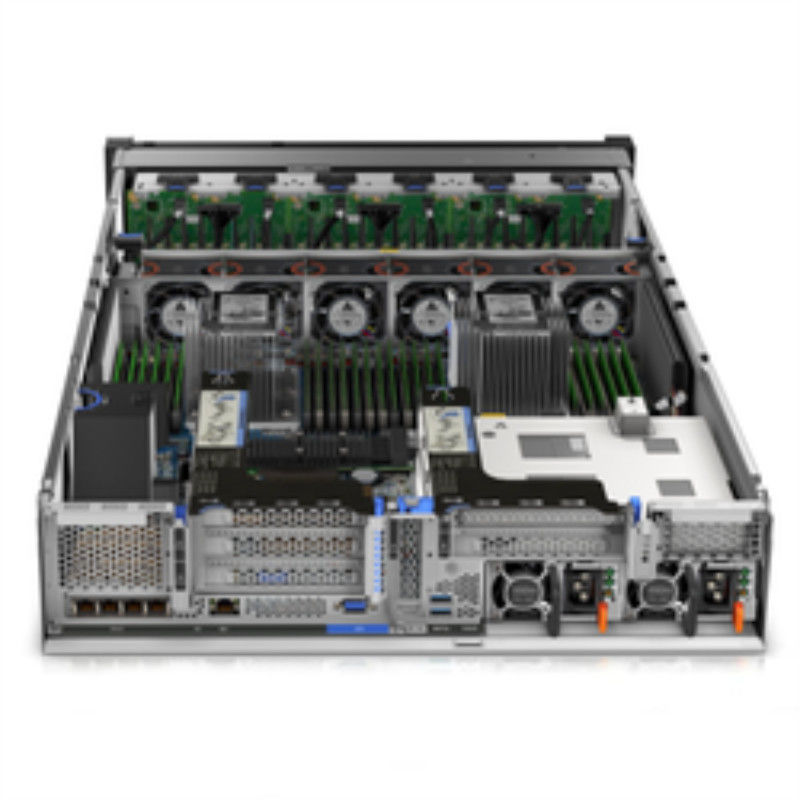

Detail Emages

 Xeon 4210 Lenovo GPU Server Thinksystem SR650 V2 32GB Memory 2U 0Xeon 4210 Lenovo GPU Server Thinksystem SR650 V2 32GB Memory 2U 1
